Reach RS3
RTK GNSS receiver with tilt compensation
Works as a base or rover with dual-band radio or NTRIP. Survey grade accuracy in RTK, PPK and PPP.
Centimetre accuracy up to 60° tilt
Reach RS3's IMU-based tilt compensation allows you to measure up to 60 degrees of tilt with an accuracy of 20mm.
Reach RS3 continuously measures and corrects tilt in real time to keep you on target.
Survey and stakeout faster. No need to check the bubble
Effortless and robust
IMU tilt compensation
Calibration-free
We calibrate each unit individually at the factory, so you can get your Reach RS3 up and running right out of the box.
Immune to magnetic disturbances
Unaffected by magnetic fields, the RS3 provides robust tilt compensation even when working close to metal structures.
Quick initialization
Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.
Rapid and Reliable GNSS receiver
Gets a fix in 5 seconds
Reach RS3 gets a centimeter-accurate solution in about 5 seconds. It maintains robust performance even when the sky view is partially obstructed, or the receiver itself is tilted.
RINEX logging and PPP support
Up to 22 hours on 1 charge
Built-in LTE modem
Get corrections from CORS,
Reach, or 3rd-party base
Internet
NTRIP
Base and Rover
Work in RTK with VRS or a single baseline CORS network. You can also connect another GNSS receiver as an
NTRIP base using Emlid NTRIP Caster.
COMPATIBILITY: Any receiver with RTCM3 support
Dual-band radio
LoRa 868/915 MHz
Base and Rover
Perfect for areas with no internet coverage for NTRIP. LoRa is used when connecting Emlid receivers over the radio.
COMPATIBILITY: Reach RS2 / RS2+ / RS3
UHF 450 MHz
Rover
An option to mix and match RTK receivers within your fleet. You can configure your Reach RS3 to receive corrections from an existing base*.
You can also use a high-power external radio on your Reach base and connect with the UHF radio* receiver in Reach RS3.
COMPATIBILITY: Bases with radios that transmit TRIMTALK 450S**
*Requires a 410-470 MHz antenna, sold separately
**TRIMTALK is a trademark of Trimble Inc.
Comes with software
for the field and the office
- Emlid Flow
- Emlid Flow 360
- Emlid Studio
- Emlid Caster
Emlid Flow efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection and stakeout, and team collaboration.
The basic features are available for free to all users. Upgrade your Emlid Flow and Flow 360 with a single subscription.
Tilt Compensation
RINEX logging
Boundary survey
Topographic survey
Set-out
Bulk earthwork
Rugged
and compact
126 x 126 x 142 mm
950 g
Waterproof
RS3 is waterproof to IP67. Silicone plugs completely seal and protect all connectors from water and dust.
22 hours on one charge
The Reach RS3 battery can withstand high and low temperatures and over 2000 charge and discharge cycles. While others are hot-swapping batteries, your Reach just keeps on working.
-20 to +65 ºС
We extensively tested Reach RS3 in conditions that simulate the coldest winters and hottest summers.
Impact-resistant
The body of the Reach RS3 is made of polycarbonate and coated with elastomer. The combination of these materials makes your Reach RS3 drop resistant.
User reviews

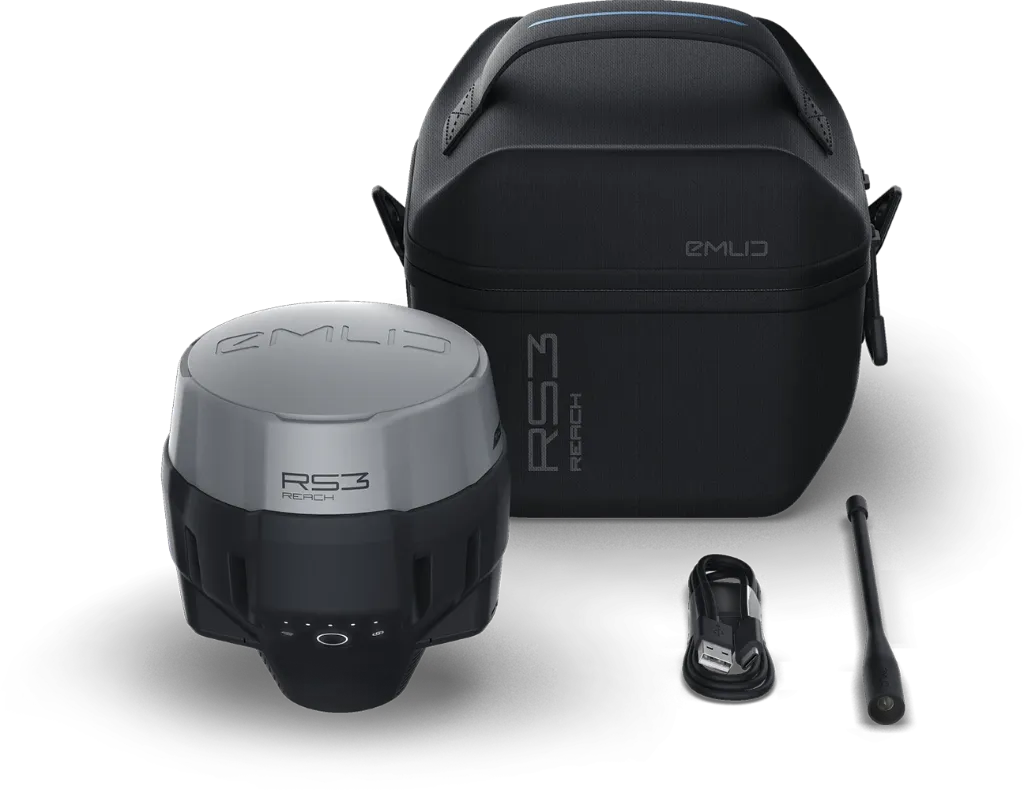

In the package
- Reach RS3
- LoRa antenna
- USB cable
- Carrying case with a strap
Need help?
Tutorials
Watch quickstart guides and comprehensive feature overviews.
Emlid support team regularly updates all materials based on the most frequently asked questions and popular workflows.
Free lifetime support
To get help with general questions and configuration, contact our application engineers via Facebook, , or E-mail.
Community
Join the Forum and Facebook User Group to get in touch with the Emlid team, get tips and advice, and connect with Emlid users from around the world.
