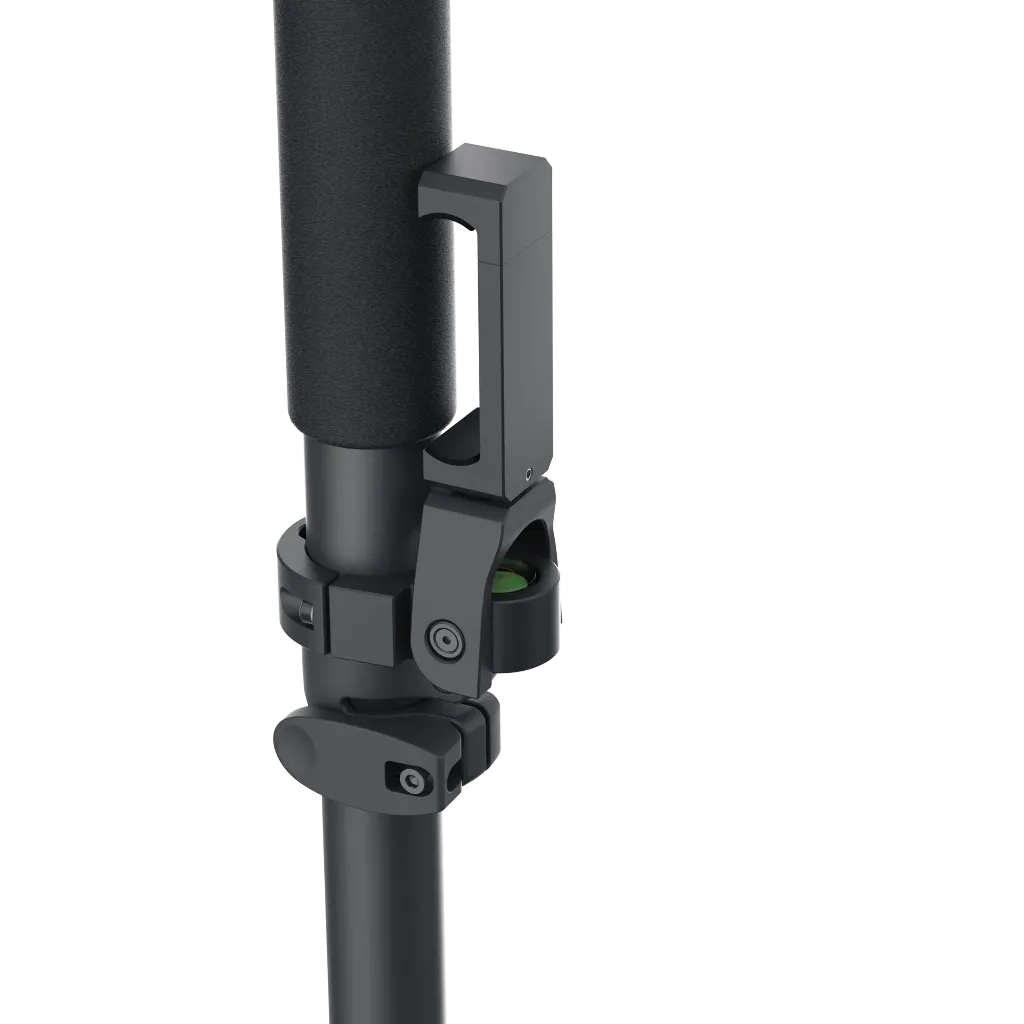

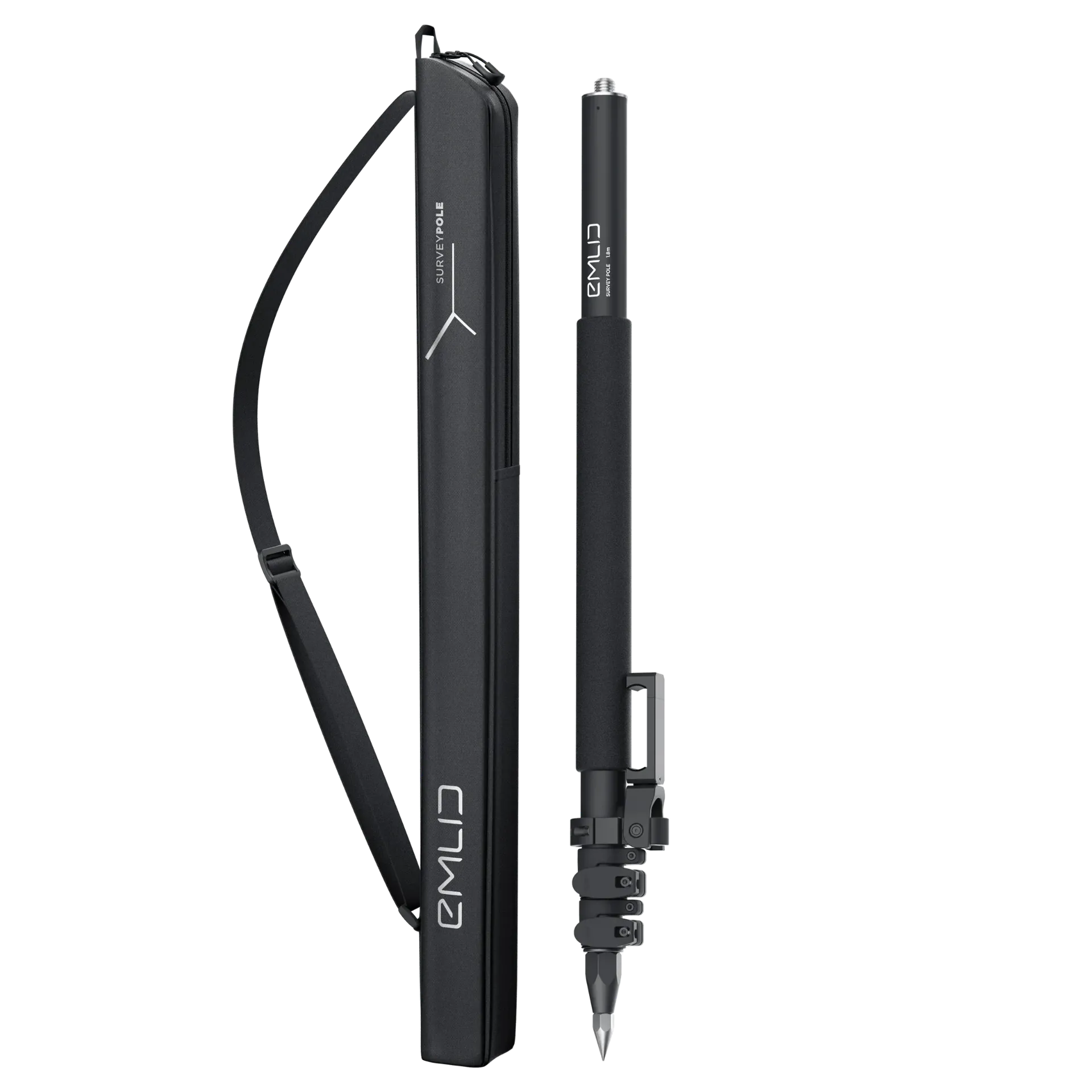

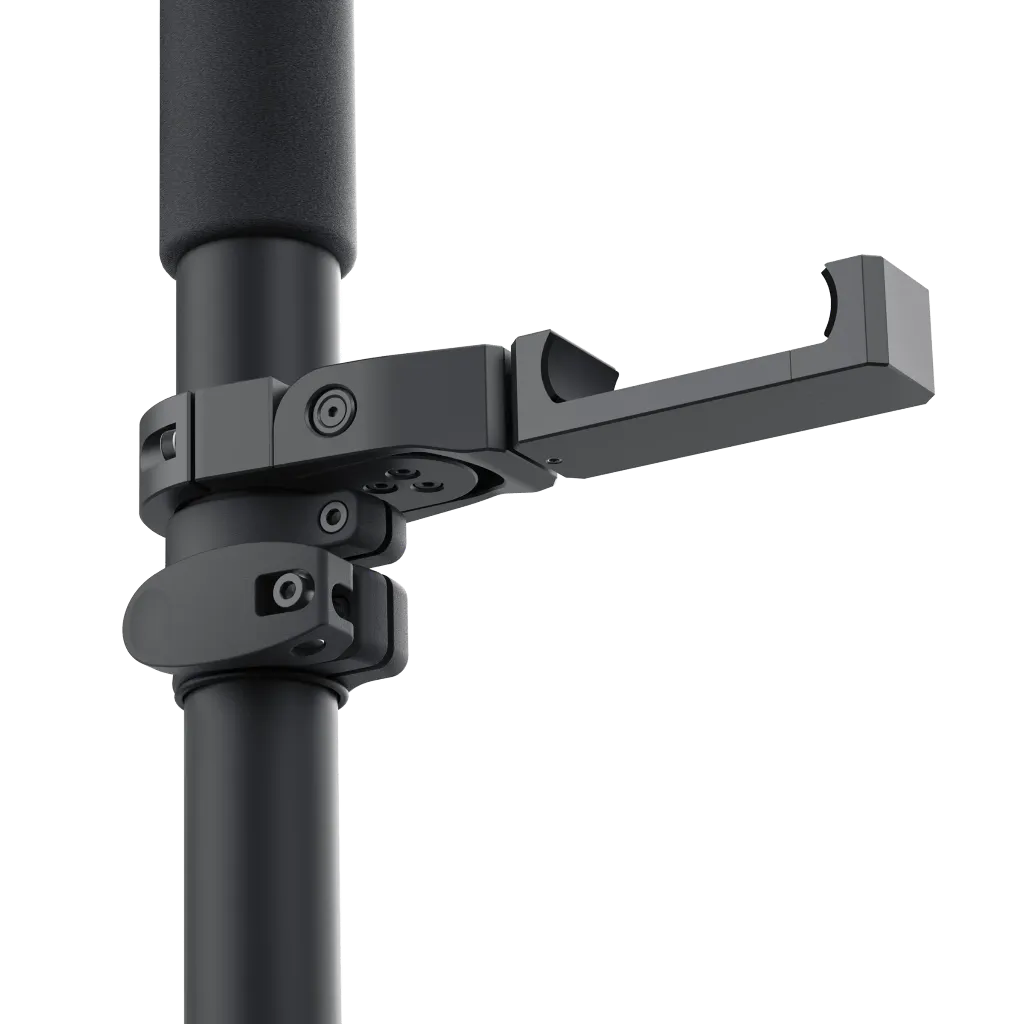

Emlid Survey Pole with a smartphone mount

To guarantee the safe operation of the survey pole, follow the precautions below:

- Do not exceed the 10 kg maximum payload capacity of the survey pole.

- Do not bend or stress the survey pole while extended - a bent survey pole will reduce the accuracy of the measurements.

- Do not expose the survey pole to direct sunlight for a long time.

- Keep the survey pole away from power supply sources and do not use it during a thunderstorm, as it may conduct electricity.

- Be careful when handling the tip of the survey pole.

- Watch your fingers when closing the flip locks and handling the control device holder.

- After surveying in the rain, dry the flip locks with a clean, soft, lint-free cloth.

- After surveying in dusty or sandy environments, clean the flip locks with compressed air.

Mechanical

Material: Anodized aluminum

Maximum height: 1.8 m

Closed length: 0.74 m

Weight: 0.9 kg (1.98 lb)

Thread: 5/8-11 UNC

Operating tº: -20 to +70°C (-4 to +158°F)

Maximum load: 10 kg (22.05 lb)

Compatible smartphone dimensions: Width - 63-93 mm (2.48-3.66 in) | Depth - 15 mm (0.59 in)
